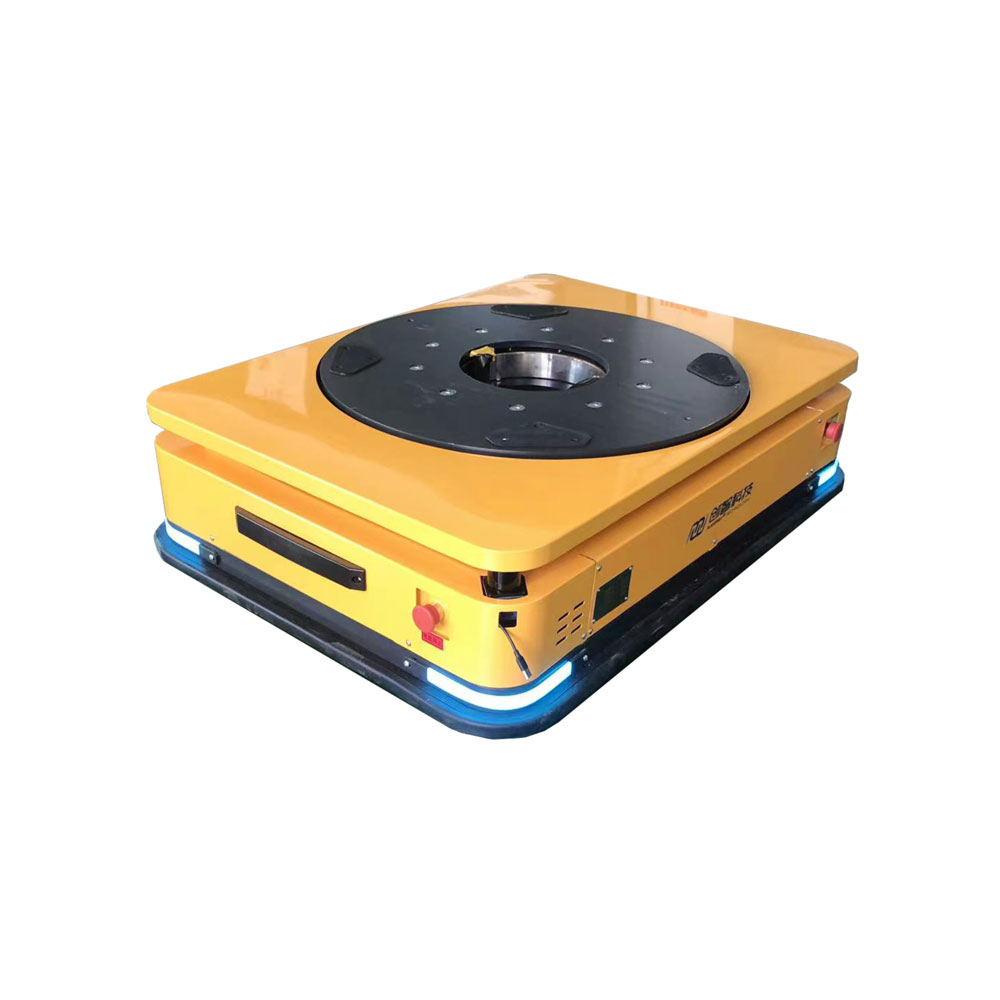

Model:Top up backpack AGV
Product features

Laser SLAM/QR code navigation

AGV lurks to lift and transport goods

Can be docked with platforms of different heights

High positioning accuracy

Load capacity below 1000kg, customizable

Product Details
Product Details
Parameter specifications
Name Top up backpack AGV
Navigation Method Laser SLAM/QR code navigation
Vehicle Size 1100*850*530mm(Customizable)
Walking Style Forward/backward/stationary rotation/lateral movement
Load ≤1000KG(Customizable)
Tracking accuracy ±10mm
Alignment accuracy ±5mm
Drive Type Dual wheel differential drive
Running speed 0~60m/min(adjustable)
Control method Manual control of the car panel, remote control of the dispatch system
Power Source Lithium battery
Control method WIFI compatible with 5G
Safety Warning Flashing lights, voice broadcast
Charging method Automatically drive to the designated area to charge or manually replace the battery
Safety Protection 360 obstacle avoidance+mechanical collision avoidance+emergency stop and other triple protection

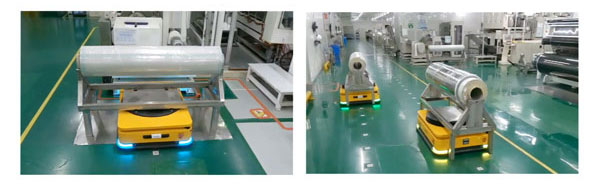

Application
