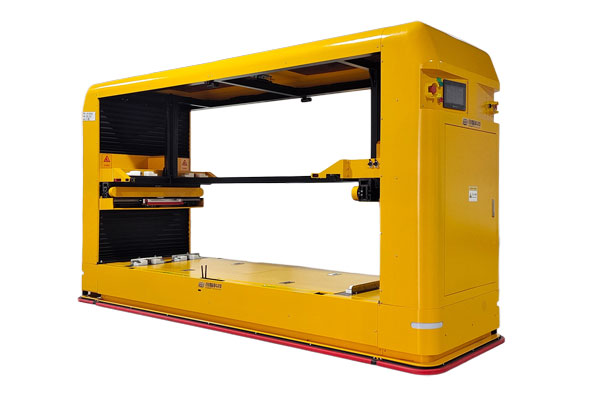

Model:Graphite boat handling AGV
Product features

100% automation rate: full-process automation from "off-line - cleaning - drying - saturation - boat calibration - on-line"

Precision picking and placing: "Autonomous correction + autonomous positioning", effectively reducing material damage during handling and distribution

High compatibility: The "XYZ three-direction large-travel fork arm" effectively supports automatic material picking and placing for various process equipment

Smart and Efficient: Walking in all directions, moving flexibly

Doubling the transportation volume: "Four storage locations design" for high-capacity turnover

Product Details
Product Details
Parameter specifications
Name Graphite boat handling AGV
Navigation Method Laser SLAM navigation + precise positioning
Vehicle Size 3300mm*985mm*1900mm(Customizable)
Walking Style Forward/Backward/Spin in Place/Lateral Movement
Load 200KG(Customizable)
Tracking accuracy ±10mm
positioning accuracy  ±3mm
Drive Mode Dual steering gear drive
Running Speed  0-60m/min(Adjustable)
control mode  Single-chip microcomputer control
Power Source Lithium Battery
Communication method WIFI Compatible With 5G
Safety Warning Flashing Lights, Voice Broadcast
Charging Method Automatically drive to the designated area for charging
Safety Protection Triple protection including 360 ° obstacle avoidance, mechanical collision avoidance, and emergency stop

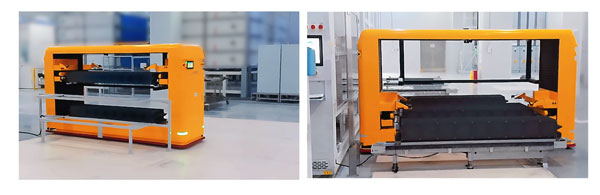

Application
