Reach Truck AGV_AGVs_Products_Makerwit Technology

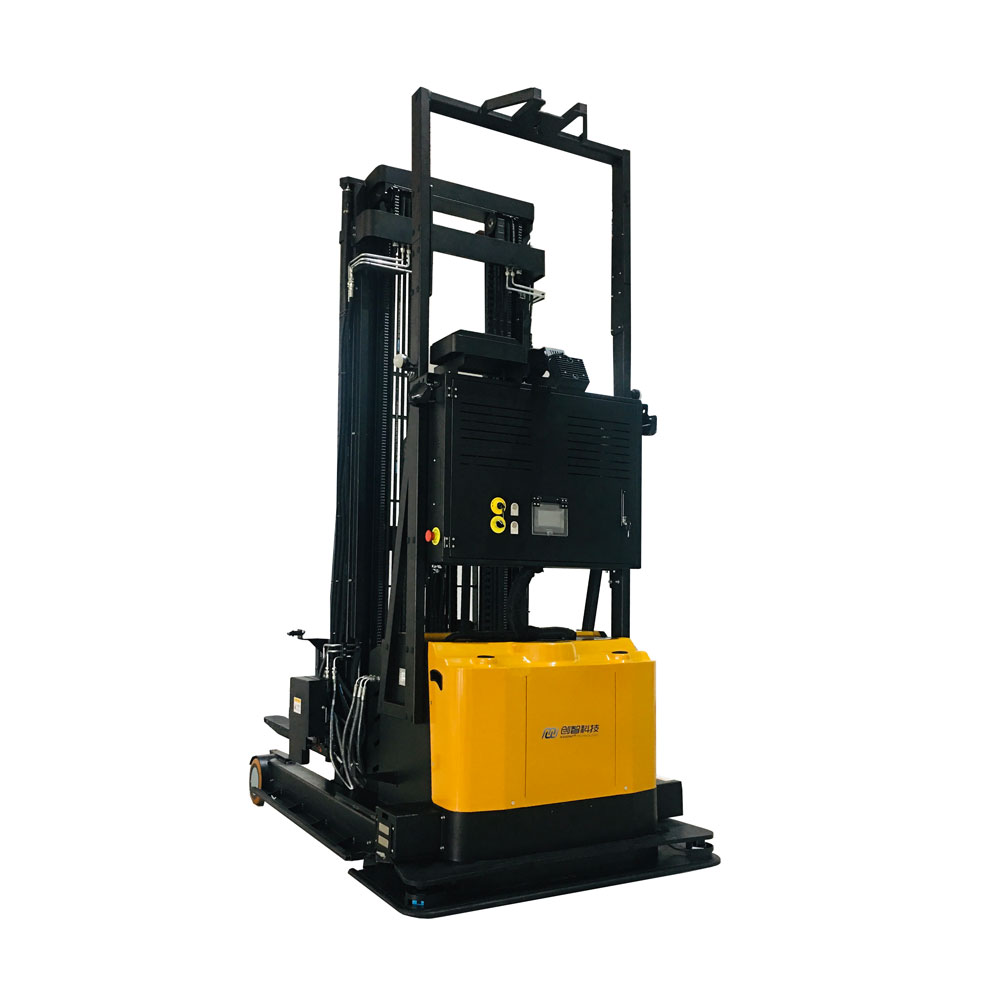

Model：Reach Truck AGV

Product features

Laser SLAM navigation

Customization is available for loads below 1.5T

High positioning accuracy

Multi-level gantry mechanism

It has the ability to freely adjust the lifting height, with a maximum lifting height of up to 9 meters

Prev Next

Product Details

Product Details

Parameter specifications

Name		Reach Truck AGV
Navigation Method		Laser SLAM Navigation
Vehicle Size		12008102200mm(Customizable)
Walking Style		Forward/Backward/Left Turn/Right Turn/Rotate in Place
Load		≤300KG(Customizable)
Guidance Accuracy		±15mm
Parking Accuracy		±10mm
Drive mode		Dual-wheel differential drive
Running speed		0~60m/min(adjustable)
Control mode		Single-chip microcomputer control
Power Source		Lithium Battery
Communication Method		WIFI
Safety Warning		Flashing Lights, Voice Broadcast
Site Identification		Reflective Pillar
Safety Protection		Obstacle avoidance sensor mechanical collision height obstacle avoidance sensor (optional)

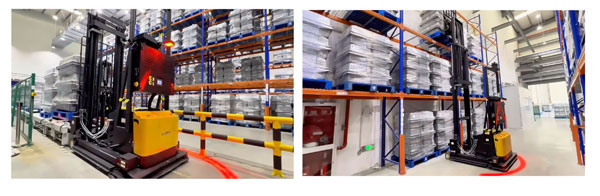

Application
