Heavy duty AGV_AGVs_Products_Makerwit Technology

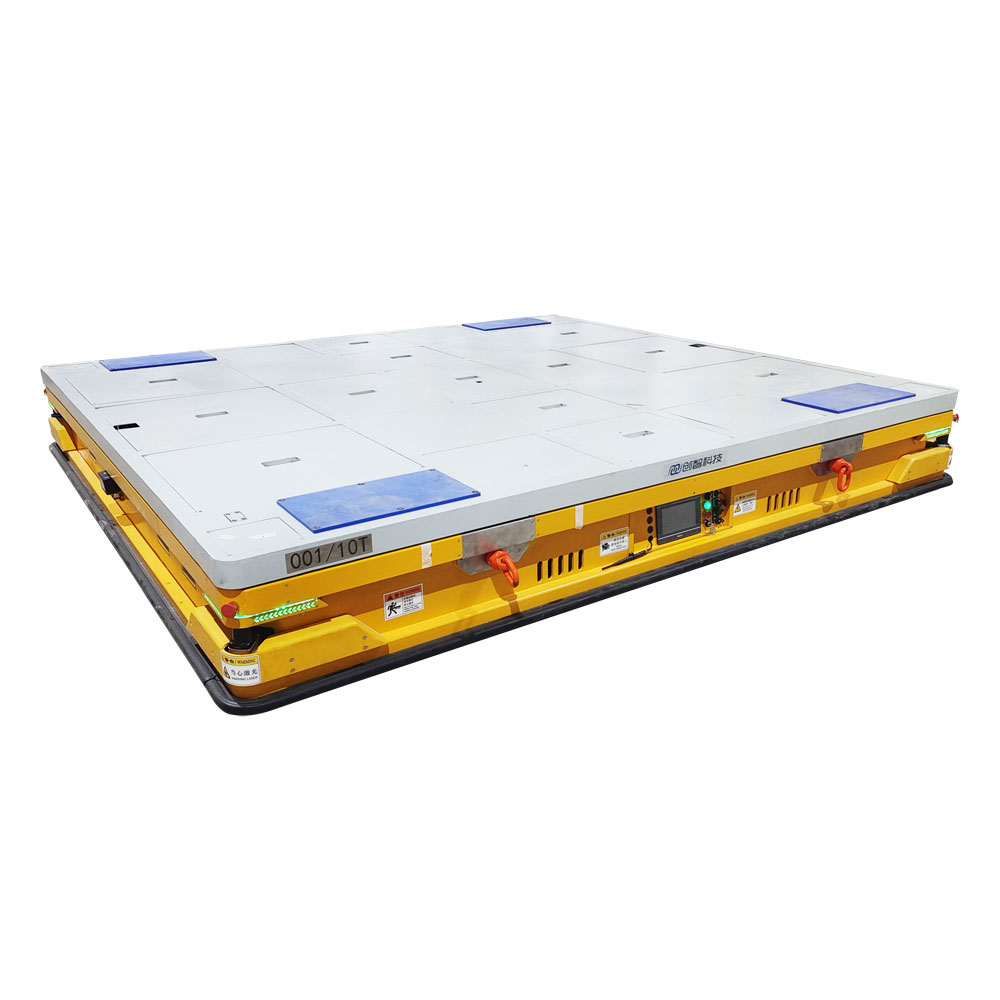

Model：Heavy duty AGV

Product features

4 tons to 70 tons of super heavy load, customized according to demand

Laser+QR code composite navigation, fearless of complex scenes

Ultra low body 400mm docking, flexible shuttle in low space

2/4/6/8 steering wheel chassis to choose from, precise positioning within 10mm

360 ° laser obstacle avoidance+omnidirectional anti-collision strip

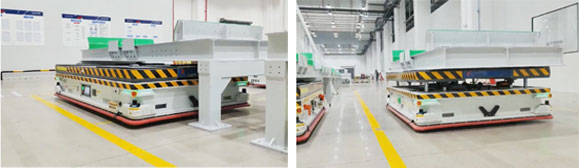

Main application scenarios for energy storage business

Prev Next

Product Details

Product Details

Parameter specifications

Name		Heavy duty AGV
Navigation Method		Laser Navigation
Vehicle Size		32003000460mm(Anti slip pad 10))
Walking Style		Forward/backward/left turn/right turn/lateral movement
Load		10000KG(customizable)
Guidance Accuracy		±10mm
positioning accuracy		±10mm
Drive Type		Servo
Running speed		0~30m/min(adjustable)
Lifting height		100mm
Power type		Lithium Battery
Communication Method		WIFI
Safety Warning		Flashing Lights, Voice Broadcast
Charging Method		Automatically drive to the designated area for charging
Safety Protection		Triple protection including four corner laser obstacle avoidance, edge collision avoidance, and emergency stop button

Application
