Model:Sky Rail Car
Product features

Utilizing aerial orbit to achieve three-dimensional transportation and improve space utilization efficiency

Seamless integration with upper level systems to achieve fully automated and visualized intelligent scheduling and control

Tracks, stations, and carts can be flexibly configured as needed to adapt to various materials and scene changes

The maximum speed of the car can reach 240 meters per minute, with a maximum load of 500kg

Product Details
Product Details
Parameter specifications
Name Sky Rail Car
Operation control Manual/wireless scheduling
Vehicle Size 1050*970*630mm
Average walking speed 0.8m/s
Load 40KG
Walking accuracy ±5mm
Lifting accuracy ±2mm
Mode of exercise Dual track operation
Running speed 1~30m/min(adjustable)
Rate of climb 0.2m/s
Driving on a curved road 0.3m/s
Communication Method WIFI
Safety Warning Signal lights/music
Acceleration 0.7m/s²
Safety Protection Laser obstacle avoidance
Application

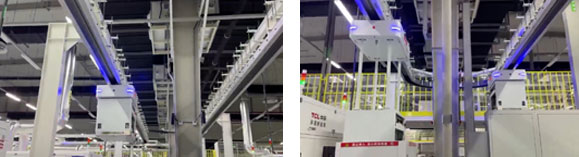

天轨小车实况图
