Forward moving stacker AGV_AGVs_Products_Makerwit Technology

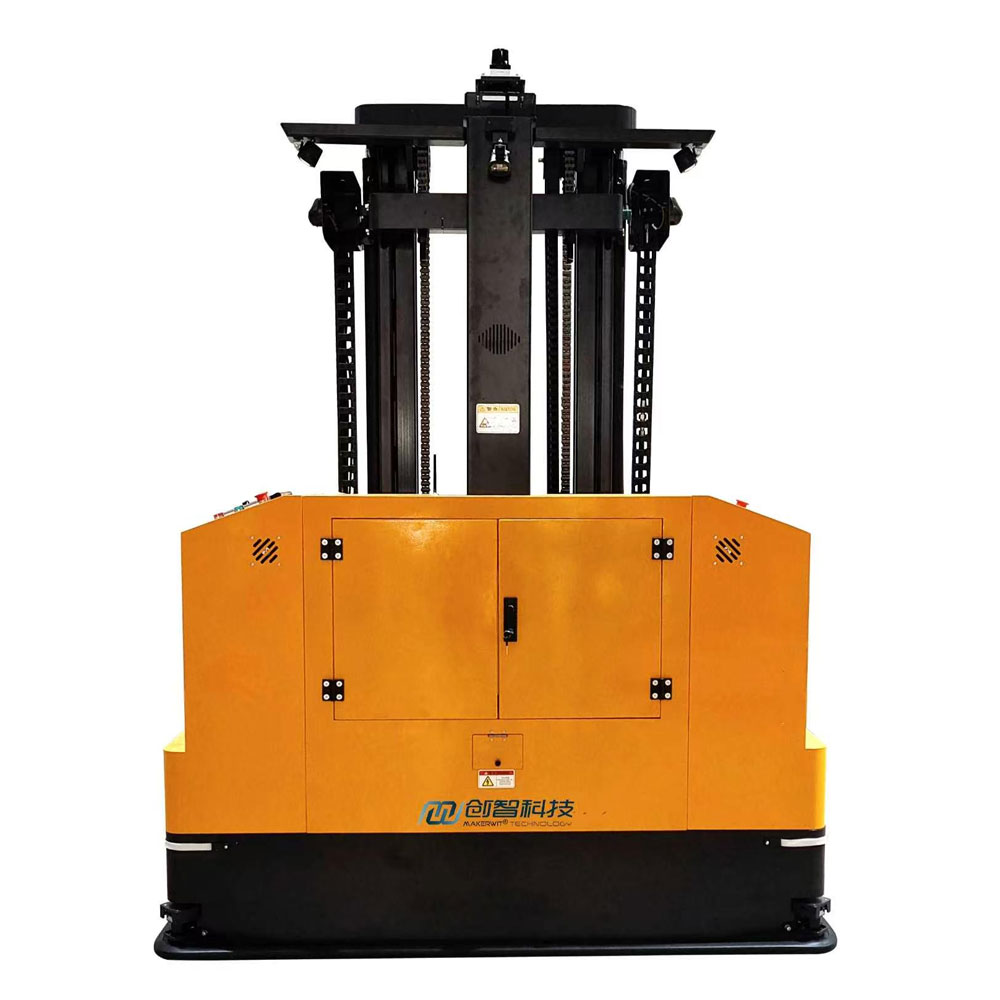

Model：Forward moving stacker AGV

Product features

Load 2T, stack height 2m (customizable), flexible shuttle of 2.5-meter tunnel

24-hour unmanned operation, increasing throughput efficiency by 15%~30%

± 10mm high-precision positioning, automatic docking with WMS

360 ° Multiple Security Protection
. Our company produces AGV forklifts under the MAKERWIT brand

Prev Nothing

Product Details

Product Details

Parameter specifications

Name		Forward moving stacker AGV
Navigation method		Laser Navigation
Vehicle Size		2034mm1934mm2200mm
Walking Style		Forward/backward/stationary rotation/lateral movement
Load		2T
Pile height		2000mm
Positioning accuracy		±10mm
Drive Type		Servo
Running speed		0~30m/min
Transfer power		100mm
Power Source		Lithium battery
Control method		WIFI
Safety Warning		Flashing lights, voice broadcast
Charging method		Automatically drive to the designated area to charge or manually replace the battery
Safety Protection		Laser obstacle avoidance+edge collision avoidance+emergency stop button+fork tip collision detection

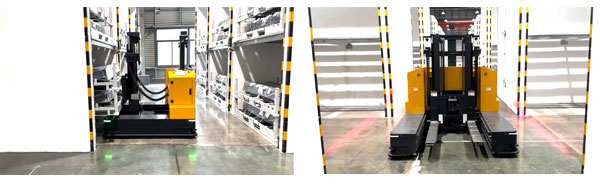

Application
