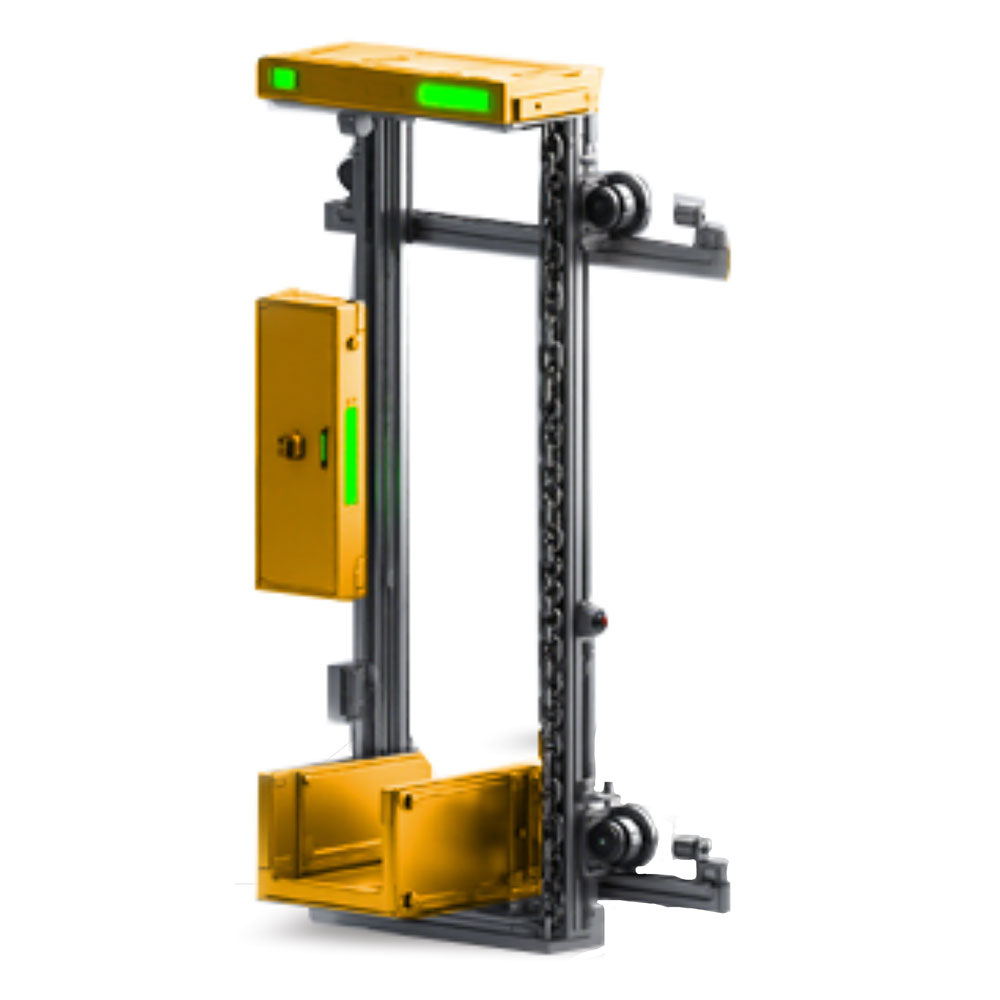

Model:Shelf RGV
Product features

Rail travel without the need for ground modification

One car, one track, quick installation, flexible expansion, low construction and maintenance costs

Sliding contact line power supply, 24-hour continuous operation, no need for charging or swapping, high single machine efficiency

Connect to the WCS system via Wi Fi, covering any cargo location in the aisle, and complete actions such as retrieval, placement, and storage according to instructions

Laser ranging and positioning holes collaborate to achieve precise positioning

Supports horizontal walking, vertical lifting, bidirectional and dual depth cargo picking and unloading, and can be adapted to various cargo platforms

Fully servo motor control, precise, efficient and energy-saving

Product Details
Product Details
Parameter specifications
Name Shelf RGV
Control method Microcontroller control
Vehicle Size 1410mm*835mm*2880mm(Customizable)
Walking style left/right
Load ≤50KG
Improve positioning accuracy ±3mm
Walking positioning accuracy ±3mm
Material handling method Double deep clamping fork
Running speed 2m/s
Docking height 350mm-2350mm
Increase speed 1m/s
Communication Method WIFI+Optical Communication
Safety Warning Warning light+sound alarm
Charging method Busbar
Safety Protection Mechanical limit pull+anti fall device
Application

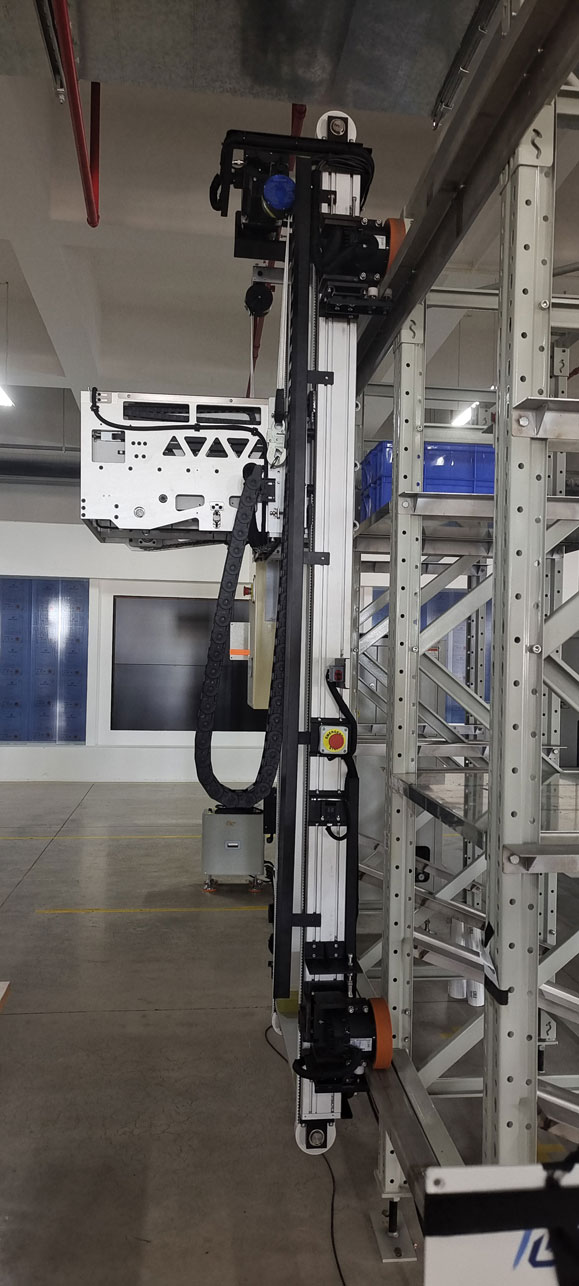

货架RGV实况图en
